OpenWrt 802.11s Wireless Mesh Setup

This guide walks you through configuring an 802.11s wireless mesh backhaul between two OpenWrt routers using the LuCI web interface, plus a shared 2.4 GHz access point for end users.

This guide implements the concepts introduced in Chapter 2.2 -- Expanding Coverage.

Other mesh setups possible

This is not the only way to set up a wireless mesh with OpenWrt. This guide focuses on a simple, beginner-friendly setup using LuCI that is suitable for most community network use cases. It uses the 5 GHz band for the mesh backhaul and 2.4 GHz for the access point, but other configurations are possible depending on your hardware capabilities and coverage needs.

What You'll Learn

  • How to swap the default Wi-Fi package for one that supports 802.11s mesh
  • How to turn a secondary router into a "dumb AP" so it does not conflict with the main router
  • How to create a 5 GHz mesh backhaul link between two routers
  • How to configure a shared 2.4 GHz access point for seamless roaming

Prerequisites

  • Two OpenWrt routers with dual-band radios (2.4 GHz + 5 GHz). Could be also done only with 2.4 GHz.
  • Both routers already flashed with OpenWrt (see Flash OpenWrt)
  • LuCI web interface accessible on both routers
  • Both routers on the same LAN subnet (or reachable for initial configuration)
  • A computer with a web browser and an Ethernet cable

Perform the package swap on both routers

Every step marked "on both routers" must use identical settings on each device. A mismatch in mesh ID, channel, or encryption key will prevent the link from forming.

Used Versions

Software Version
OpenWrt 25.12.1
wpad-mesh-wolfssl 2025.08.26~ca266cc2-r1
Router model Cudy WR3000E v1

Your versions may work as well

This guide was tested with the above versions, but other recent versions of OpenWrt and the wpad-mesh package should work similarly.

You can open an issue if you encounter any problems with your versions.

Step-by-Step Implementation

1. Set the LAN IP address

Before anything else, each router needs a unique IP on your subnet so they do not conflict.

Go to Network > Interfaces and edit the LAN interface. Change the IPv4 address to fit your main subnet. For example, if the main router is 192.168.70.1, set the secondary router to 192.168.70.3.

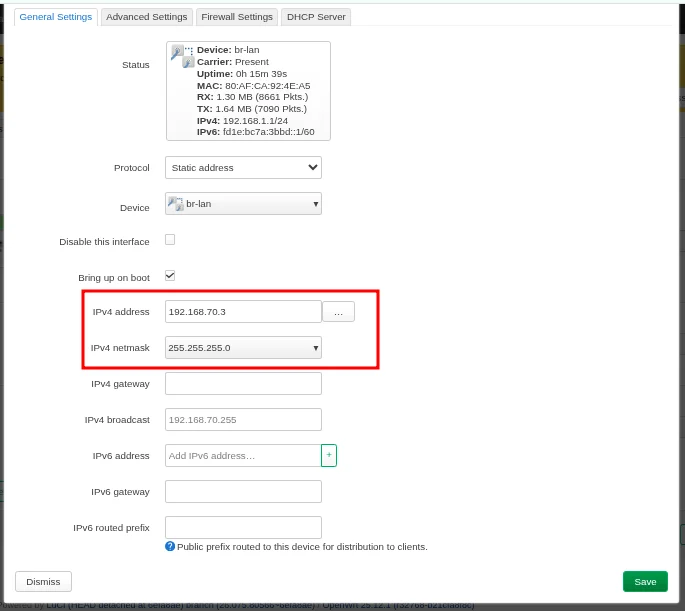

LuCI LAN interface showing the IPv4 address field set to a new IP

Click Save & Apply. You will need to reconnect to the router using the new IP address.

2. Remove the default Wi-Fi package

OpenWrt ships with wpad-basic-mbedtls (or a similar variant), which does not support 802.11s mesh. You must replace it with the mesh-capable version.

Navigate to System > Software and click Update lists to refresh the package index.

Filter for wpad-basic. Find your installed version (e.g., wpad-basic-mbedtls) and click Remove.

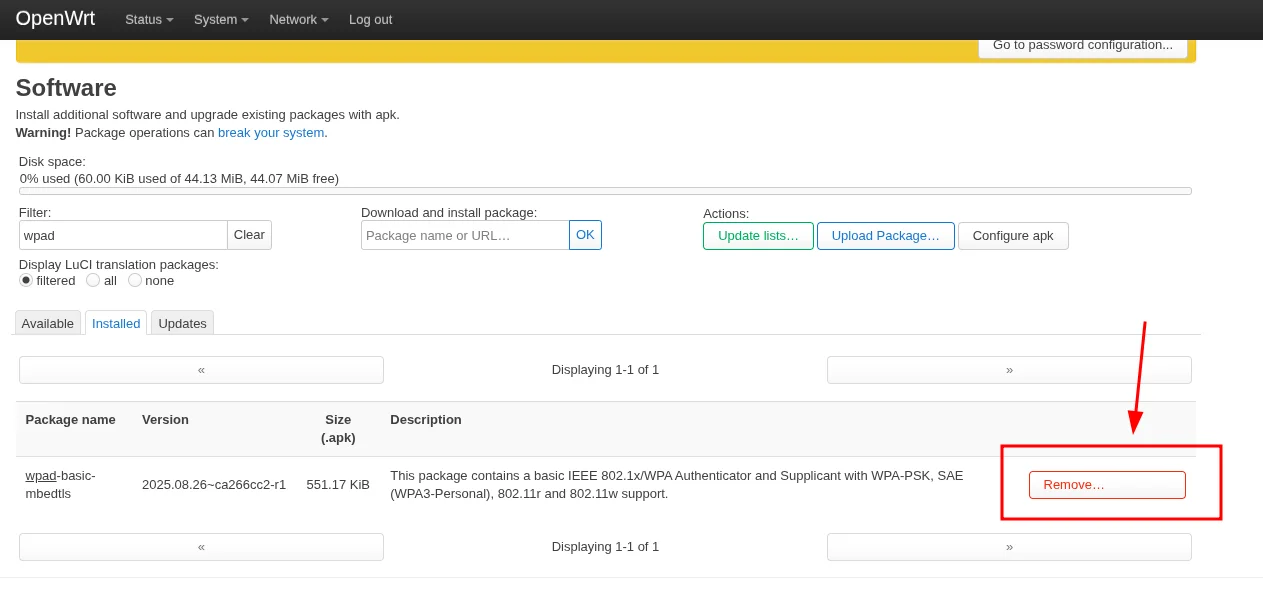

LuCI Software page showing wpad-basic-mbedtls selected for removal

Wait for the removal to finish

Do not proceed until the removal completes. Installing the new package while the old one is still present can cause LuCI errors or a broken Wi-Fi stack.

3. Install the mesh-capable Wi-Fi package

Still in System > Software, filter for wpad-mesh. Find the matching variant (e.g., wpad-mesh-wolfssl) and click Install.

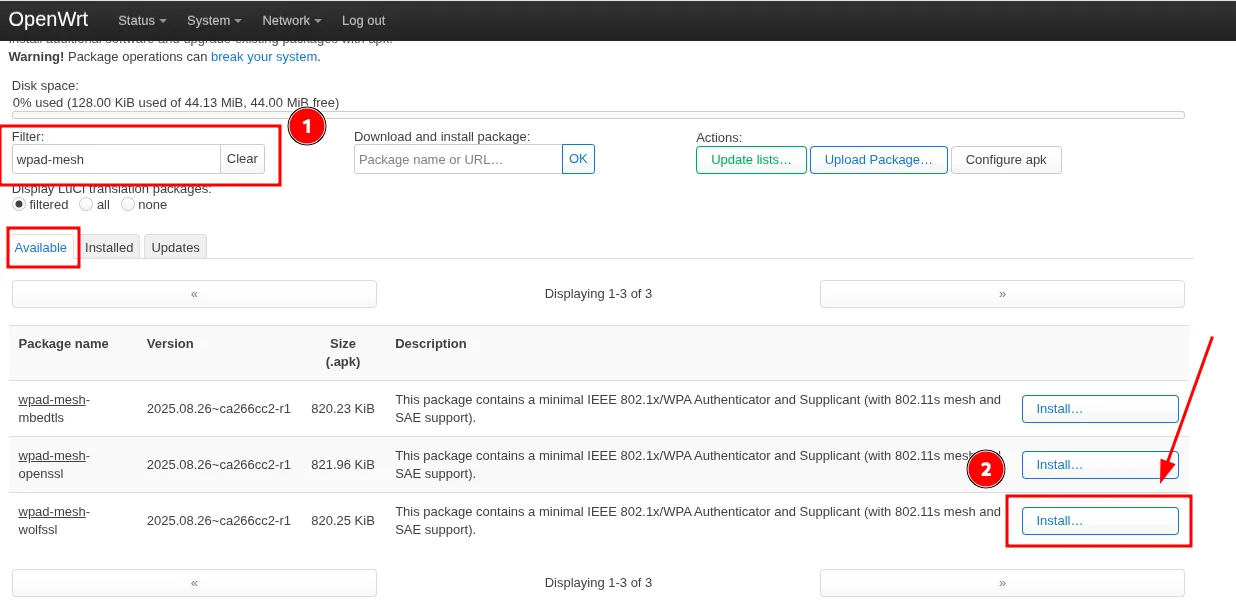

LuCI Software page showing wpad-mesh-wolfssl ready to install

After installation completes, navigate to System > Reboot and restart the router. Repeat steps 1 through 3 on the second router before continuing.

Verify the package is active

After rebooting, go back to System > Software and confirm that wpad-mesh-wolfssl (or your chosen variant) appears in the installed list and that wpad-basic-* is gone.

4. Disable DHCP on the secondary router

The secondary router must act as a "dumb AP" so it does not hand out its own IP addresses or compete with the main router's DHCP server.

On the secondary router only, go to Network > Interfaces, edit the LAN interface, and scroll down to the DHCP Server section. Check the box Ignore interface to disable DHCP on this device.

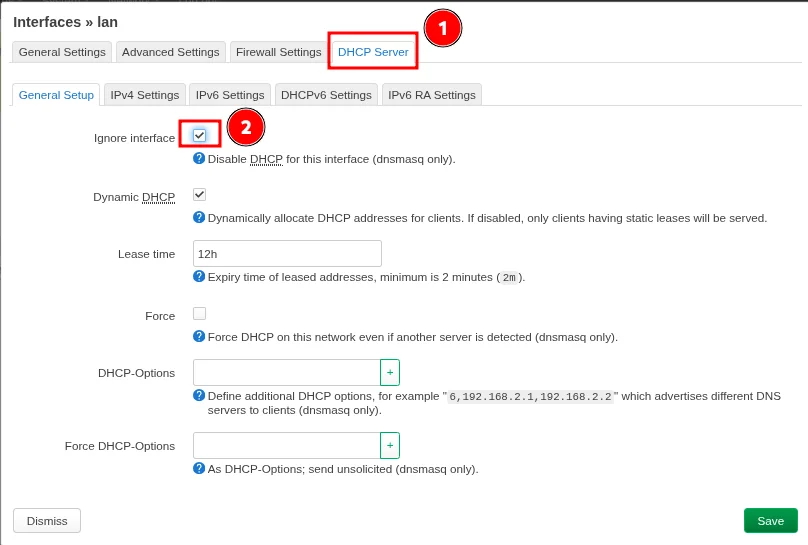

LuCI DHCP Server section with the Ignore interface checkbox enabled

Click Save & Apply.

Why disable DHCP?

Two DHCP servers on the same network will hand out conflicting leases, causing intermittent connectivity for all clients. Only the main router should run DHCP.

5. Configure the 5 GHz mesh backhaul

This is the wireless link that connects the two routers together. The settings must be identical on both devices.

On each router, go to Network > Wireless. Find the radios (i.e. radio0, radio1) and remove any default Wi-Fi networks attached to it.

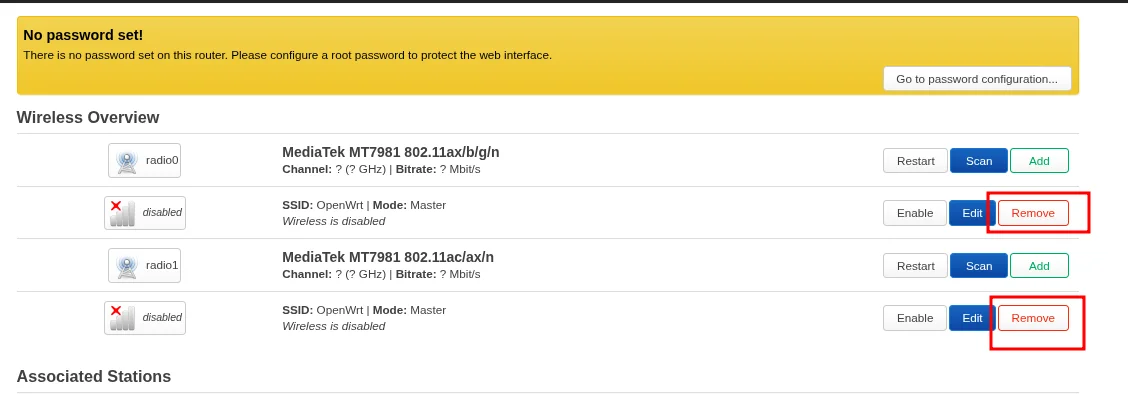

LuCI Wireless page with the default 5 GHz network being removed

Click Add on the 5 GHz radio to create a new wireless interface.

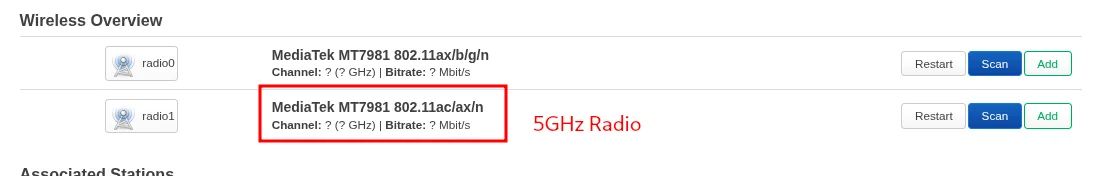

LuCI showing the Add button on the 5 GHz radio

Configure the new interface with these settings:

Device Configuration:

Setting Value
Channel A fixed channel (e.g., 44). Do not use Auto.
Width 20 MHz or 40 MHz. Narrower channels penetrate walls better.

Interface Configuration:

Setting Value
Mode 802.11s
Mesh ID School_Backhaul (must match exactly on both routers)
Network Check the box for lan

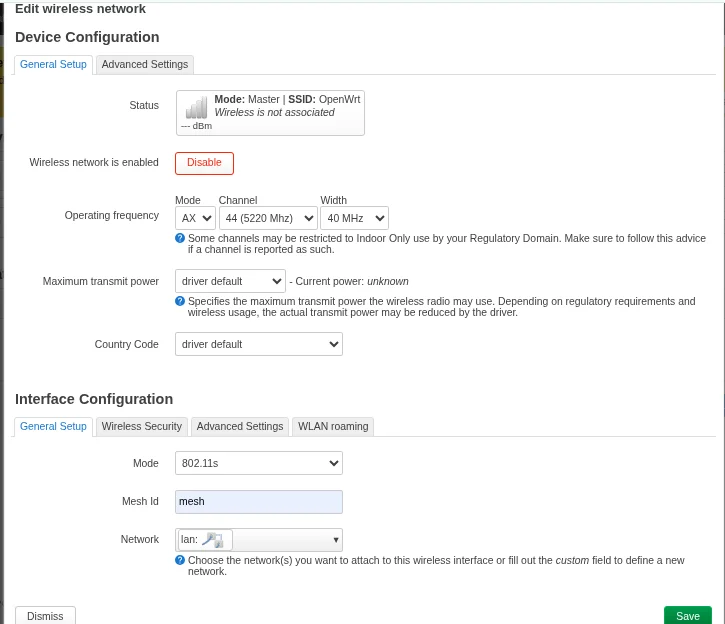

LuCI radio and interface configuration for the 5 GHz mesh backhaul

Wireless Security:

Setting Value
Encryption WPA3-SAE
Key A strong password, identical on both routers

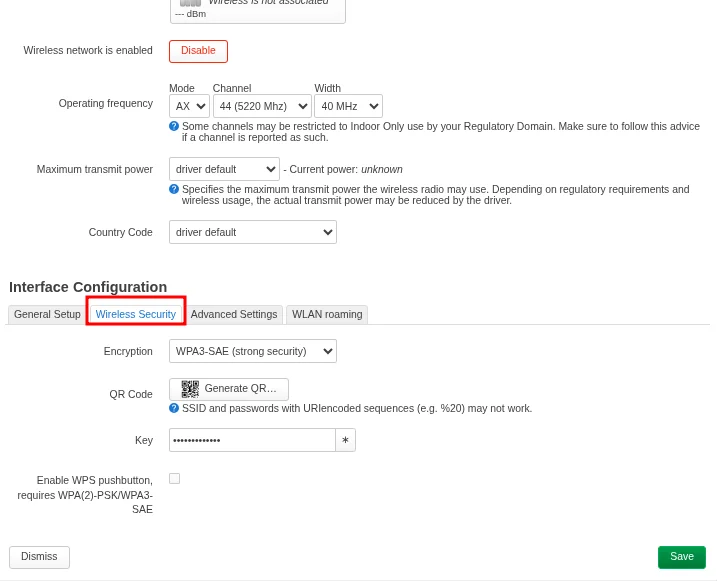

LuCI wireless security configuration for the mesh interface

Click Save & Apply on both routers. Then check the Network > Wireless page -- a Tx/Rx rate appearing on the mesh interface confirms the link is up.

No link forming?

Double-check that the channel, mesh ID, encryption type, and key are identical on both routers. Also ensure both devices are within radio range and that no DFS channels are causing radar detection delays.

6. Configure the 2.4 GHz access point (fronthaul)

This is the Wi-Fi network that end users will connect to. Configure it on both routers so users can roam seamlessly between them.

Go to Network > Wireless, find the 2.4 GHz radio, and click Add (or Edit if a default network exists).

Device Configuration:

Setting Value
Channel Auto, or a fixed non-overlapping channel (1, 6, or 11)
Transmit Power Default or Medium (approximately 15--18 dBm)

Interface Configuration:

Setting Value
Mode Access Point
ESSID School_Student_WiFi
Network Check the box for lan

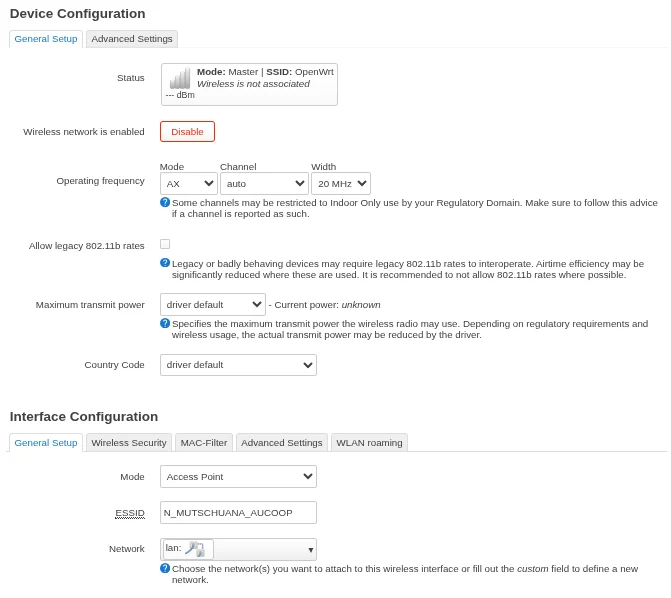

LuCI 2.4 GHz interface configuration for the student access point

Wireless Security:

Setting Value
Encryption WPA2-PSK (best compatibility with older student devices)
Key The shared password for students

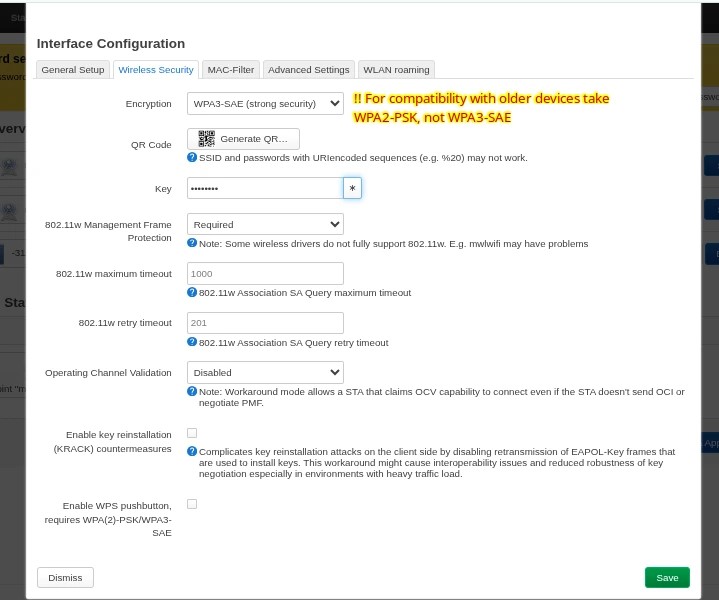

LuCI 2.4 GHz wireless security settings

Click Save & Apply.

Seamless roaming between access points

For users to move between coverage areas without re-entering the password, the ESSID, Encryption, and Key must be identical on the 2.4 GHz AP of all routers. Devices will automatically switch to the strongest available signal.
