Create and Manage a Proxmox Cluster

This guide covers how to create a Proxmox VE cluster from two or more nodes.

This guide implements the concept introduced in Chapter 2.14 -- Clustering.

What You'll Learn

  • How to create a Proxmox VE cluster and join additional nodes

Prerequisites

  • Two or more machines running Proxmox VE (same major version on all nodes)
  • Network connectivity between all nodes (ideally a dedicated cluster network)
  • Root SSH access between nodes

Used Versions

Software Version
Proxmox VE 9.1.2

Step-by-Step Implementation

1. Prepare the nodes

  1. Ensure all nodes run the same Proxmox VE major version.
  2. Set a unique hostname on each node. The hostname must be resolvable from every other node.

  3. Verify that each node can reach the others via SSH. Inside the terminal of the first node, run:

    ssh root@<other-node-ip> hostname

  4. Repeat for each node to confirm connectivity.

Empty node requirement

When a node joins an existing cluster, its local configuration (/etc/pve) is replaced by the cluster configuration. Any VMs or containers defined only on that node's local config will be lost. Always join from a fresh or empty node, or back up first.

CPU model considerations

If nodes have different CPU models, plan to set the CPU type to x86-64-v2-AES (or another common baseline) for any VMs you want to live-migrate. The Host CPU type only works when all nodes share the same CPU.

2. Create the cluster on the first node

  1. Open the Proxmox web UI on the node that will be the first cluster member.

  2. Navigate to Datacenter --> Cluster --> Create Cluster.

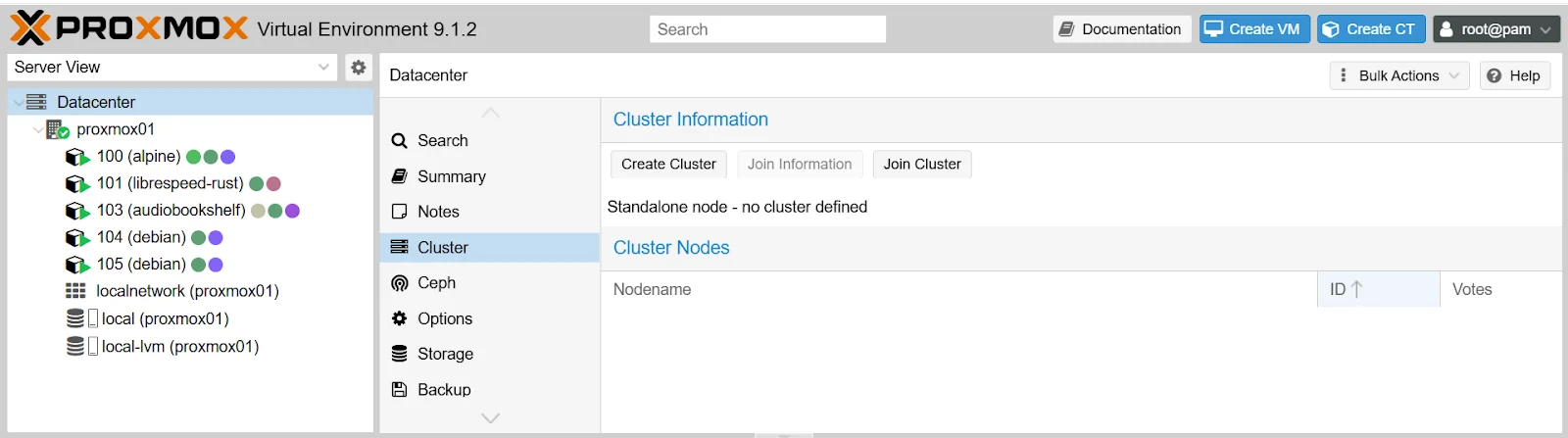

    Proxmox Datacenter Cluster page showing standalone node with Create Cluster and Join Cluster buttons

  3. Enter a cluster name (e.g., School-Cluster).

  4. Select the network link for cluster communication. If you have a dedicated cluster network interface, choose it here.

  5. Click Create.

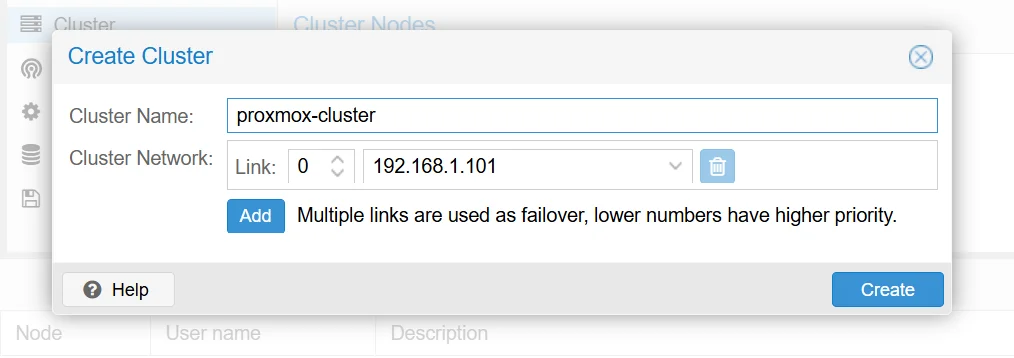

    Create Cluster dialog with Cluster Name field and Cluster Network link

Cluster network

The cluster link carries Corosync traffic (heartbeat, quorum votes, configuration sync). A dedicated network or VLAN avoids contention with VM traffic. If you only have one network, that works too -- Corosync traffic is lightweight.

3. Join the second node to the cluster

  1. On the first node (the one where you created the cluster), navigate to Datacenter --> Cluster.

  2. Click Join Information and copy the displayed join string.

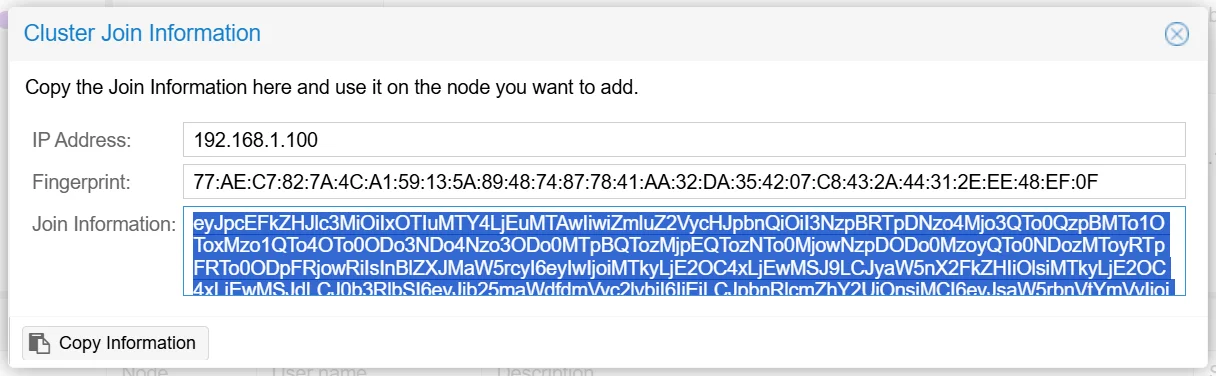

    Cluster Join Information panel showing IP address, fingerprint, and join string

  3. On the second node, navigate to Datacenter --> Cluster --> Join Cluster.

  4. Paste the join information.
  5. Enter the root password of the first node.
  6. Select the correct network link if prompted.
  7. Click Join.

Irreversible merge

Joining a cluster overwrites the joining node's /etc/pve configuration. If the second node already has VMs or containers, back up their configurations before joining.

4. Verify cluster status

  1. On any node, run:

    pvecm status

  2. Confirm the output shows all expected nodes and Quorate: Yes.

  3. List individual nodes and their vote counts:

    pvecm nodes

  4. In the web UI, navigate to Datacenter --> Cluster and verify all nodes appear with a green status.

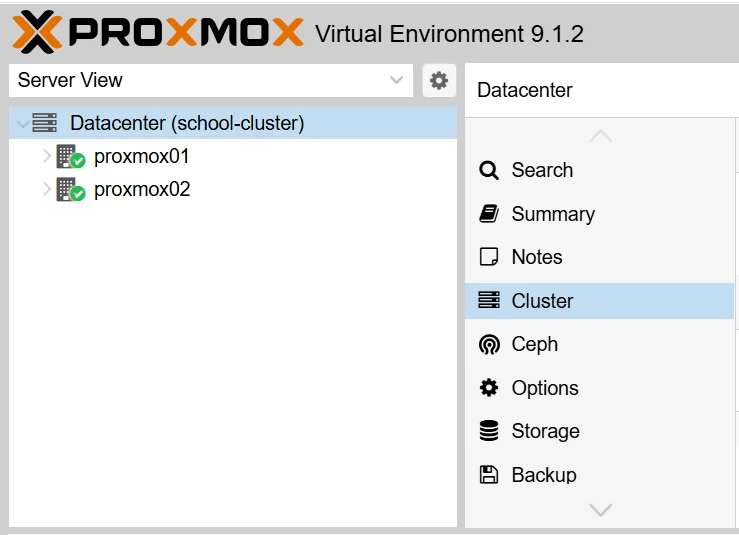

    Proxmox VE Datacenter view showing school-cluster with proxmox01 and proxmox02 joined

References

Revision History

Date Version Changes Author Contributors
2026-04-02 1.0 Initial guide creation Jaime Motjé Sergio Gimenez
